GE Mark V Series Drive Control Card with 200mm Height 100mm Width and 1 Year Warranty for Turbine Control Systems
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | GE |
| 인증 | COO |
| 모델 번호 | DS215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) |
| 최소 주문 수량 | 1 |
| 가격 | $1500 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | GE DS215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) 드라이브 제어 카드 | 제품 ID | DS215GASCG4AZZ01A (DS200SDCCG4AEC+DS200SLCCG3ACC) |
|---|---|---|---|
| 시리즈 | 마크 v | 제품 순 중량 | 2kg |
| 제품 순 깊이/길이 | 330mm | 제품 순 높이 | 200mm |
| 제품 순 폭 | 100mm | 보증 | 1 년 |
| 강조하다 | 200mm Height Drive Control Card,100mm Width Drive Control Board,1 Year Warranty Turbine Control Card |
||
제품 설명

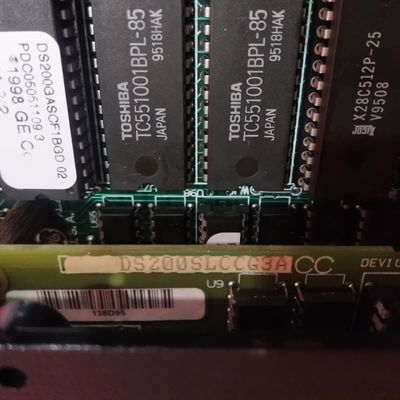

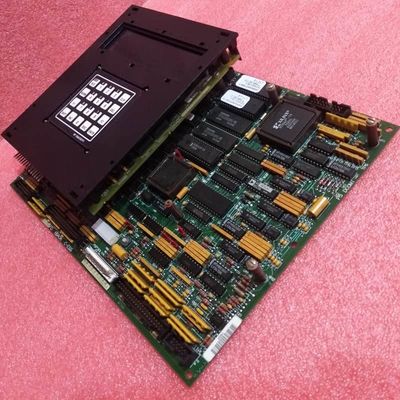

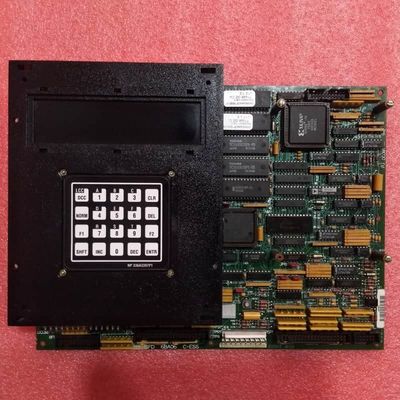

GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) Drive Control Card
Product Overview
The GE DS215GASCG4AZZ01A(DS200SDCCG4AEC+DS200SLCCG3ACC) is a core Drive Control Board designed for industrial drive systems, likely integrated with GE's Mark V Turbine Control System. This advanced control card features three specialized microprocessors:
- Drive Control Processor (DCP): Manages system-level tasks including chip select decoding, direct memory access (DMA), and interrupt control
- Motor Control Processor (MCP): Handles motor-specific functions
- Co-Motor Processor (CMP): Processes math-intensive tasks beyond the MCP's capability
Key Features
- Expandable Functionality: Supports optional LAN and signal processor cards for diverse communication and signal processing needs
- Intuitive Diagnostics: 10-LED front panel with BCD/binary fault coding enables quick issue identification
- Configurable Hardware: Factory-set JP/WJ jumpers ensure compatibility with flexibility for user adjustments
- Robust Design: Shared RAM allows simultaneous multi-processor access for efficient operation
- Secure Installation: Includes standoffs, nylon washer compatibility, and EPROM transfer guidelines
Installation & Maintenance
For safe installation/replacement:
- Disconnect all power sources before installation to prevent electrocution
- Remove cables from auxiliary cards and securing screws before board removal
- Transfer EPROM modules from defective board to replacement unit
- Use factory nylon washers to prevent screw damage during reassembly
- Ensure plastic holders are properly tightened
Note: All specifications and features are subject to change without notice. Always refer to the manufacturer's documentation for the most current information.
