GE DS200TCPDG1BCC 125 VDC Power Distribution Module with Independent Core Control and Comprehensive Status Monitoring for Mark V Turbine Control
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | GE |
| 모델 번호 | DS200TCPDG1BCC |
| 최소 주문 수량 | 1pc |
| 가격 | $2000 |
| 포장 세부 사항 | 새롭고 독창적 인 공장, 개별 박스 포장 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999pcs |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | GE DS200TCPDG1B DS200TCPDG1BCC 전력 분배 모듈 | 제품 ID | DS200TCPDG1BCC |
|---|---|---|---|
| 시리즈 | 마크 v | 기능 | 이산 출력 팩 |
| 제품 순 깊이/길이 | 330mm | 제품 순 높이 | 200mm |
| 제품 순 폭 | 100mm | 제품 순 중량 | 2kg |
| 보증 | 1 세 | ||
| 강조하다 | 125 VDC Power Distribution Module,Independent Core Control Power Distribution Module,Comprehensive Status Monitoring Power Distribution Module |
||
제품 설명
GE DS200TCPDG1B DS200TCPDG1BCC Power Distribution Module
Product Details:

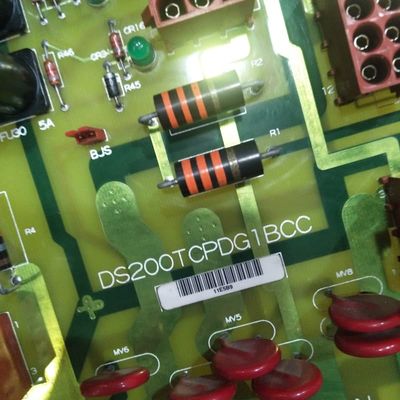

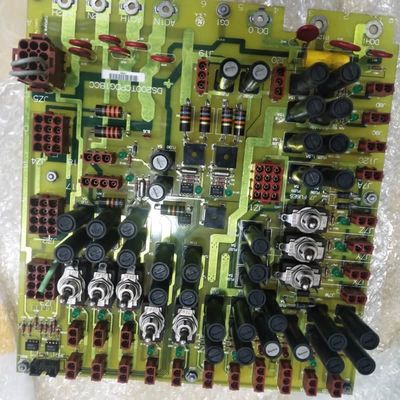

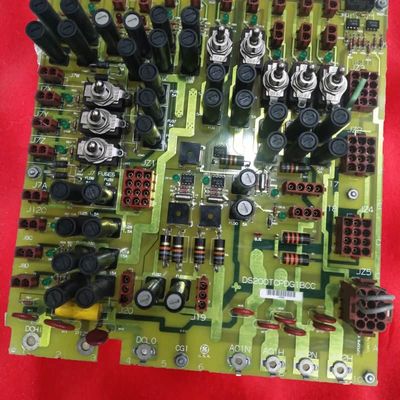

The DS200TCPDG1BCC is a Power Distribution Board designed for General Electric's Mark V Speedtronic Turbine Control System. Housed within the system's <PD> (Power Distribution) core, its primary function is to manage and distribute 125 VDC power to the TCPS boards across all I/O cores and the central control engine, as well as to the TCEA boards in the <P1> core. As a hardware-based module with three product revisions, it operates without software configuration, playing a critical role in the reliable operation of industrial gas and steam turbines.
Key Features:
Core Power Management:The board centrally distributes 125 VDC power to critical system components, including TCPS boards in every I/O and control engine core, ensuring stable and reliable operation for the entire turbine control system.
Independent Core Control:It is equipped with eight toggle switches on its surface, allowing operators to power down each core independently for maintenance, troubleshooting, or safety purposes without affecting the entire system.
Comprehensive Status Monitoring:Featuring over twenty LED indicators, the board provides extensive visual feedback on power status and distribution health, enabling quick assessment of the system's operational condition at a glance.
Extensive System Interfacing:The board utilizes a high number of connectors (including J1R, J7W, J8A, J12A, etc.) for comprehensive interfacing within the Mark V system, ensuring robust electrical connections for power distribution, although some connectors like J15 and J16 are typically unused.
Hardware Configuration Capability:While it lacks software configuration, the board includes a BJS jumper for hardware-based configuration, specifically designed to isolate the ground reference in systems that utilize an external reference, enhancing electrical safety and compatibility.
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
