GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | GE |
| 모델 번호 | DS200TCCBG1B |
| 최소 주문 수량 | 1pc |
| 가격 | $3000 |
| 포장 세부 사항 | 새롭고 독창적 인 공장, 개별 박스 포장 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999pcs |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 아날로그 보드 마크 V GE 터빈 제어 | 제품 ID | DS200TCCBG1B |
|---|---|---|---|
| 시리즈 | 마크 v | 기능 | 이산 출력 팩 |
| 제품 순 깊이/길이 | 330mm | 제품 순 높이 | 200mm |
| 제품 순 폭 | 100mm | 제품 순 중량 | 2kg |
| 보증 | 1 세 | ||
| 강조하다 | GE Turbine Control analog board,DS200TCCBG1B I/O board,Mark V turbine control board |
||
제품 설명

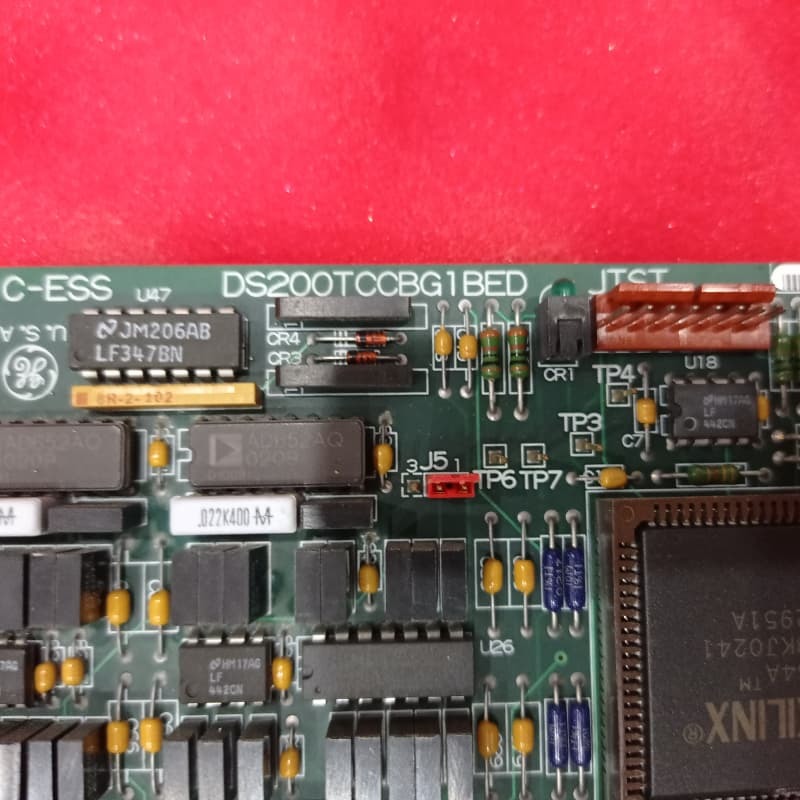

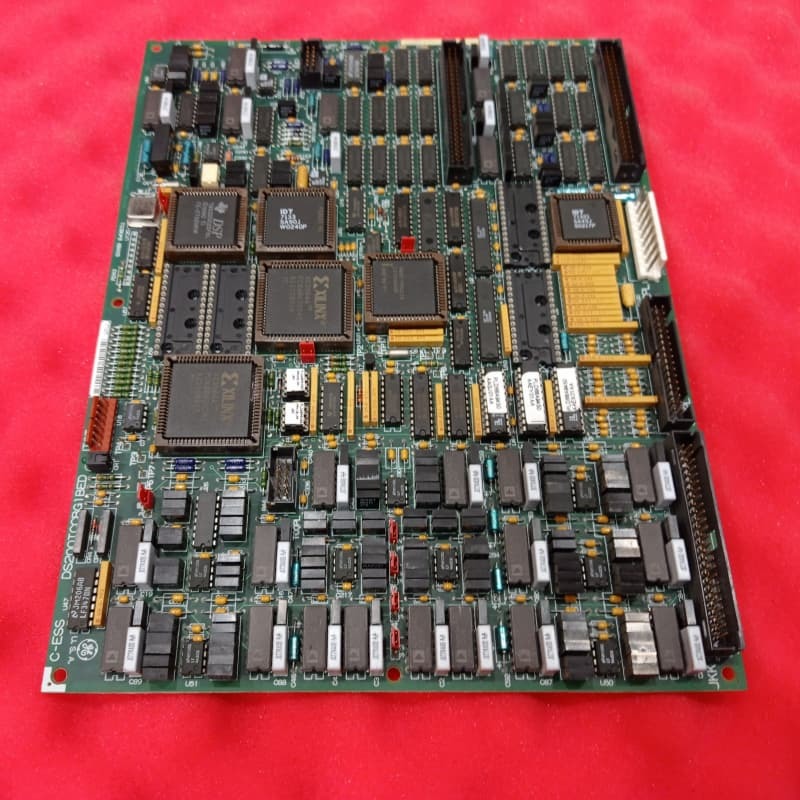

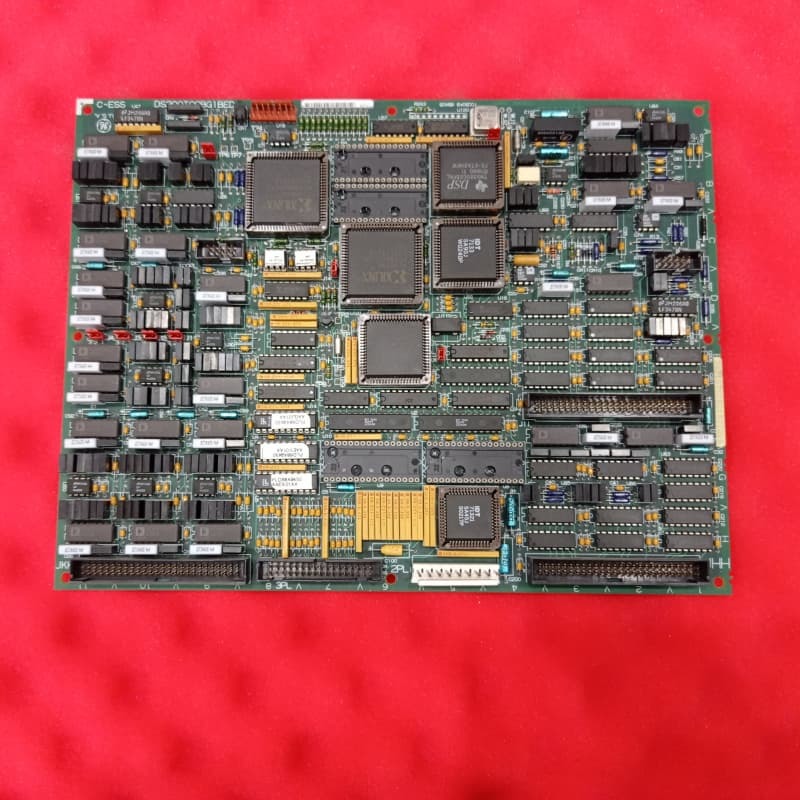

GE DS200TCCBG1B DS200TCCBG1BED I/O TC2000 Analog Board Mark V Ge Turbine Control
The GE DS200TCCBG1B is an I/O TC2000 Analog Board designed for GE's Speedtronic Mark V gas turbine control systems. A revised variant of the original DS200TCCBG1 parent board, it leverages GE's patented Speedtronic technology and fits within the legacy Mark V Series, despite the series being obsolete.
Product Details
Its core hardware includes an 80196 CPU, multiple PROM modules, one side-visible LED for status monitoring, and two 50-pin connectors. It features three configurable jumpers--3-pin design covering two pins at a time--allowing installers to adjust settings to match drive specifications. Default positions suffice for most cases, with adjustments guided by factory documentation.
Eight connectors enable system integration: 2PL (TCPS power), 3PL (COREBUS signals), JHH (TBCB inputs), JII (TBCB RTD inputs), JMP (TCEB PT/CT signals), plus JKK, JTEST, and TCQPL (vestigial, unused in normal operation).
Key Features
- Configurable Jumpers: Three jumpers (JP1-JP3) enable customization of settings to match drive requirements, with clear guidance for adjustment and default positions for simplicity.
- Central Processing & Memory: Equipped with an 80196 CPU and PROM modules, processing analog signals and executing control logic for turbine operations.
- Dedicated Connectivity: Eight connectors---five functional, three vestigial interface with key Mark V components (TCPS, TBCB, TCEB boards), ensuring seamless signal transmission.
- Status Monitoring: A side-visible LED provides at-a-glance operational status, aiding quick diagnostics.
