GE IS230SRLYH2A Simplex Relay Output Terminal Board Mark VI
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | GE |
| 인증 | COO |
| 모델 번호 | IS230SRLYH2A |
| 최소 주문 수량 | 1 |
| 가격 | $2600 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | GE IS230SRLYH2A 단순 릴레이 출력 터미널 보드 | 제품 ID | IS230SRLYH2A |
|---|---|---|---|
| 시리즈 | 마크 VI | 보증 | 1 년 |
| 제품 순 깊이/길이 | 330mm | 제품 순 높이 | 200mm |
| 제품 순 폭 | 100mm | 제품 순 중량 | 2kg |
| 강조하다 | GE Mark VI relay output board,Simplex terminal board for turbine,GE IS230SRLYH2A relay module |
||
제품 설명

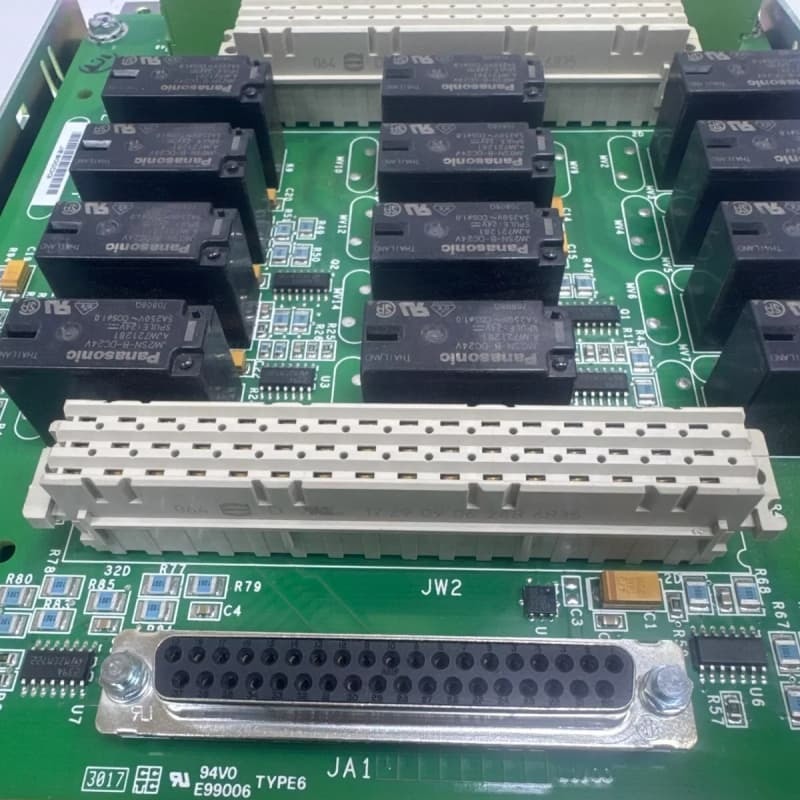

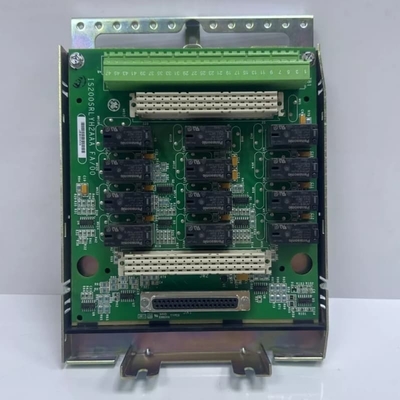

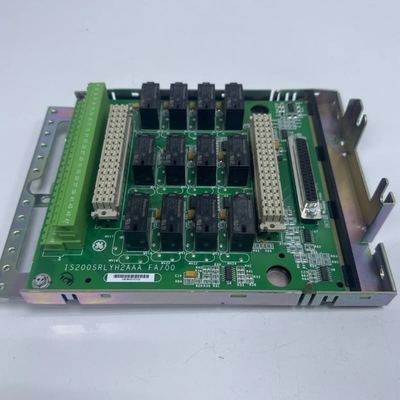

GE IS230SRLYH2A Simplex Relay Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS230SRLYH2A Simplex Relay Output Terminal Board |
| Product ID | IS230SRLYH2A |
| Series | Mark VI |
| Warranty | 1 Year |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Weight | 2kg |
Product Overview
The GE IS230SRLYH2A is a Simplex Relay Output Terminal Board under the Mark VIe Series, designed for industrial control systems. This simplex "S-type" terminal board accepts PDOA/YDOA I/O packs and delivers 12 Form C relay output circuits via 48 customer terminals, enabling reliable control of field devices through relay switching.
Key Features
- Relay Output Capabilities: 12 Form C relays with fast response times (100,000 electrical operations and 10,000,000 mechanical operations rating)
- Diagnostic Functionality: Read-only ID chip for hardware compatibility checks and isolated contact pairs for real-time relay status monitoring
- Option Board Compatibility: Supports WROB, WROF, and WROG option boards for extended functionality
- Simplified Installation: Euro-style pluggable terminals and standardized S-type mounting with double stacking capability
- Industrial Durability: Operates in -30 to 65°C with free-air convection cooling, resistant to vibration and temperature fluctuations
Technical Details
Manufactured in the U.S., this surface-mount terminal board features a compact design that aligns with other Mark VIe S-type boards for seamless cabinet integration. It generates diagnostic alarms for fuse status monitoring when paired with option boards.
