GE IS200SDIIH1ADB Isolated Contact Input Assembly Mark VIe
| 원래 장소 | 미국 |
|---|---|
| 브랜드 이름 | GE |
| 인증 | COO |
| 모델 번호 | IS200SDIIH1ADB |
| 최소 주문 수량 | 1 |
| 가격 | $2800 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999 |
제품 상세 정보
| 이름 | GE IS200SDIIH1ADB 분리 된 접점 입력 어셈블리 | 제품 ID | IS200SDIIH1ADB |
|---|---|---|---|
| 시리즈 | 마크 VI | 제품 순 깊이/길이 | 330mm |
| 제품 순 높이 | 200mm | 제품 순 폭 | 100mm |
| 보증 | 1 년 | 제품 순 중량 | 2kg |
| 강조하다 | GE Mark VIe isolated contact input,turbine control input assembly,GE IS200SDIIH1ADB module |
||
제품 설명

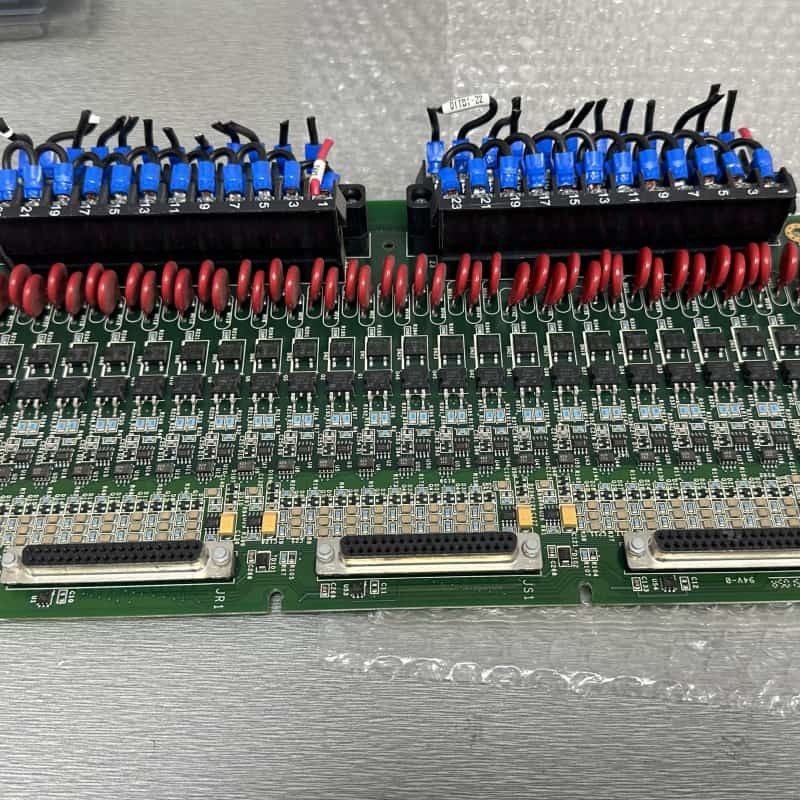

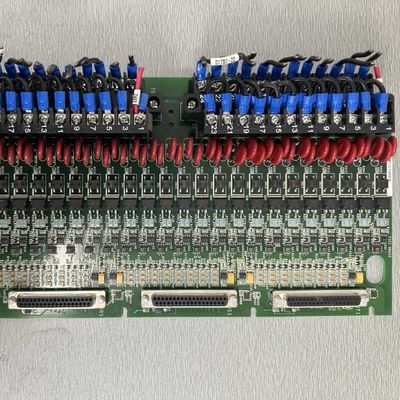

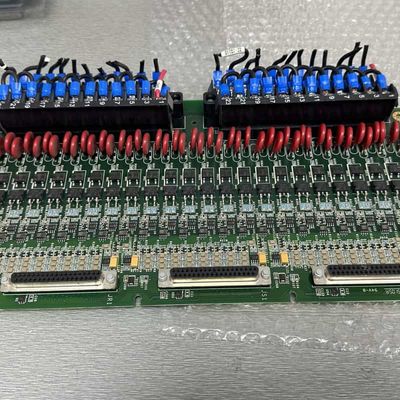

GE IS200SDIIH1ADB Isolated Contact Input Assembly for Mark VIe
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200SDIIH1ADB Isolated Contact Input Assembly |
| Product ID | IS200SDIIH1ADB |
| Series | Mark VI |
| Dimensions (H × W × D) | 200mm × 100mm × 330mm |
| Weight | 2kg |
| Warranty | 1 Year |
Product Overview
The GE IS200SDIIH1ADB is an Isolated Contact Input Assembly from the Mark VIe Series, manufactured in the U.S. for power plant and industrial control systems. This 16-channel isolated input component provides safe, interference-free monitoring of external device contacts through point isolation for each channel.
Key Features
- 16 Isolated Input Channels: Each channel features point isolation for electrical separation between circuits, enhancing safety and minimizing electromagnetic interference.
- Wide Voltage Compatibility: Supports diverse input voltages for flexible integration with various external devices.
- User-Friendly Design: Euro-style pluggable terminals enable easy wiring and maintenance without disrupting other connections.
- Expandable System: Compatible with optional PDII boards for extended functionality and seamless integration with Mark VIe systems.
- Robust Construction: Mounted on a sheet metal carrier with plastic insulator for safety, featuring dedicated chassis grounding terminals.
Applications
This turbine control device is essential for power generation plants, designed to control gas or steam turbine operation for maximum efficiency and safety. Typical applications include:
- Power generation plants
- Industrial control systems
- Compressor and pump control
- Generator monitoring systems
