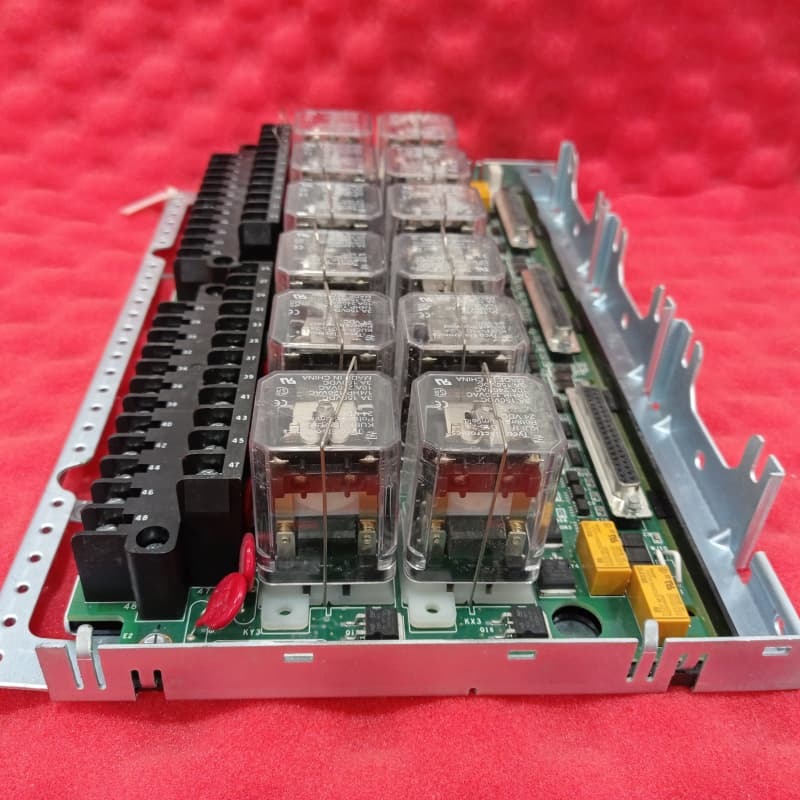

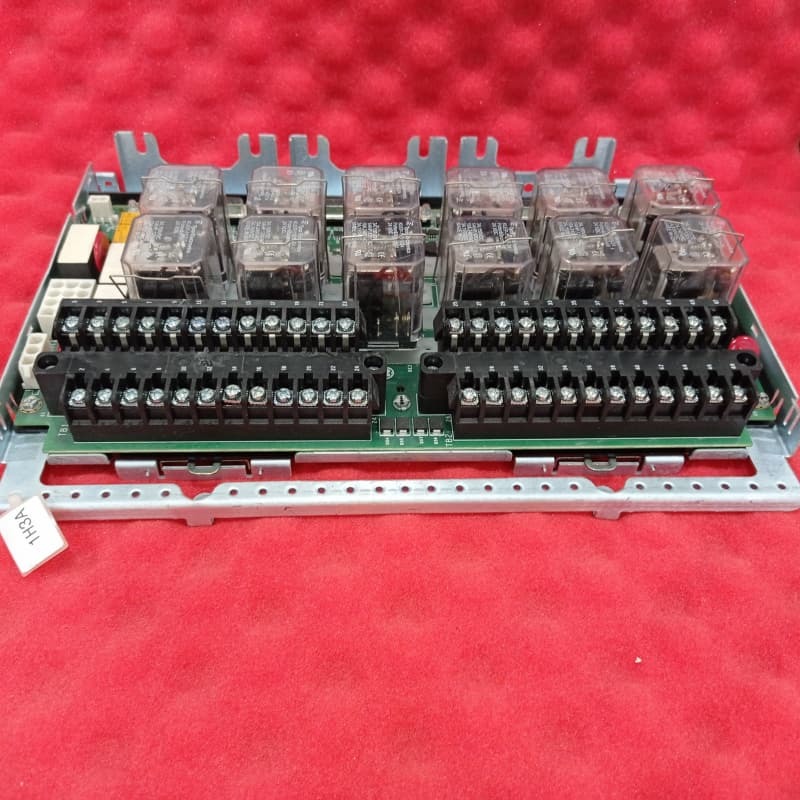

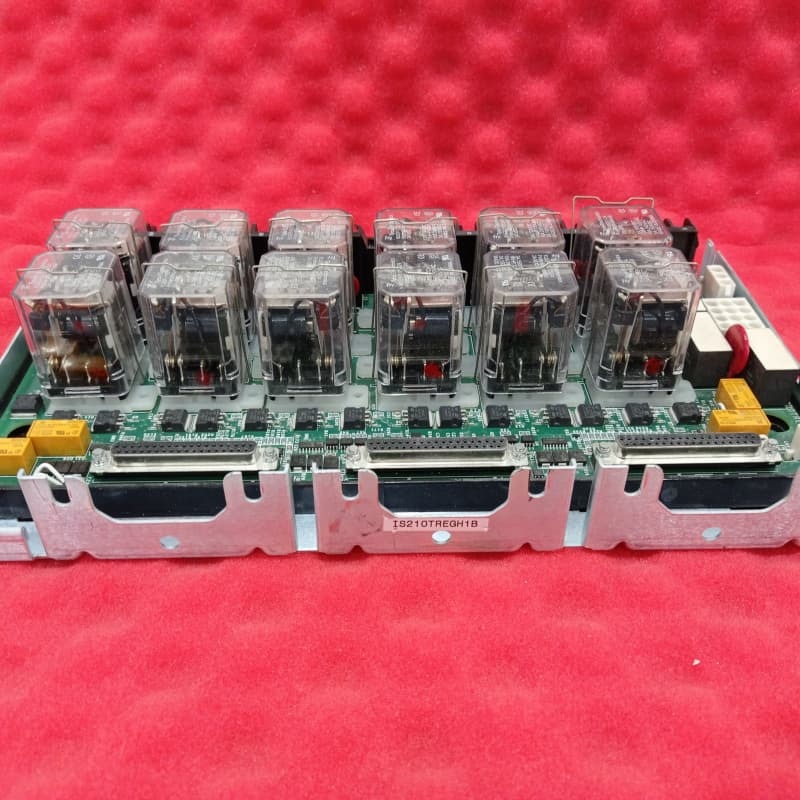

GE IS200JPDSG1AEC Mark VI Turbine Power Distribution Board
| 원래 장소 | 우리를 |
|---|---|
| 브랜드 이름 | GE |
| 모델 번호 | IS200JPDSG1AEC |
| 최소 주문 수량 | 1pc |
| 가격 | $6000 |
| 포장 세부 사항 | 새롭고 독창적 인 공장, 개별 박스 포장 |
| 배달 시간 | 5-7 일 |
| 지불 조건 | t/t |
| 공급 능력 | 999pcs |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 이름 | GE IS200JPDSG1AEC 전력 유통 보드 | 제품 ID | IS200JPDSG1AEC |
|---|---|---|---|
| 시리즈 | 마크 VI | 기능 | 터빈 비상 여행 터미널 보드 |
| 제품 순 깊이/길이 | 330mm | 제품 순 높이 | 200mm |
| 제품 순 폭 | 100mm | 제품 순 중량 | 2kg |
| 보증 | 1 세 | ||
| 강조하다 | GE Mark VI turbine power board,turbine control distribution board,GE power distribution board with warranty |
||
제품 설명
GE IS200JPDSG1AEC Power Distribution Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200JPDSG1AEC Power Distribution Board |
| Product ID | IS200JPDSG1AEC |
| Series | Mark VI |
| Function | Turbine Emergency Trip Terminal Board |
| Dimensions (L×H×W) | 330mm × 200mm × 100mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200JPDSG1AEC is a Jumper Power Distribution Board (PCB) designed for the Mark VI Turbine Control System Series, extending compatibility to gas, steam, and wind turbines—an upgrade from the Mark V Series.
Key Features
- Power Distribution: Handles 28V DC input with multiple output configurations (6×6-pin, 3×2-pin, and 3×2-pin) and a 5-screw terminal (35A) for daisy-chaining
- Diagnostic Integration: Connects to PPDA I/O packs via 62-pin D-Shell and 50-pin ribbon cables for comprehensive system monitoring
- Enhanced Reliability: Includes overcurrent protection and isolated test rings for safe voltage measurements
- Compact Design: Sheet metal-mounted with detailed wiring diagrams for secure installation
- Compatibility: Works with JPDB/JPDF/JPDE boards and PPDA packs in Mark VIe's PDM system
Technical Details
As a critical 28V DC power management component, the IS200JPDSG1AEC receives power from external AC/DC or DC/DC converters, distributing it to control system components. Its design includes enhanced features over the JPDM module, such as additional fuses, output connectors, and support for PPDA I/O packs via ribbon cables, facilitating diagnostic integration.
Manufactured with A/E/C-rated revisions, it mounts on a sheet metal structure and integrates seamlessly into Power Distribution Module (PDM) systems while complying with safety standards through proper grounding via sheet metal brackets to Functional Earth (FE).
Compatible Components
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
