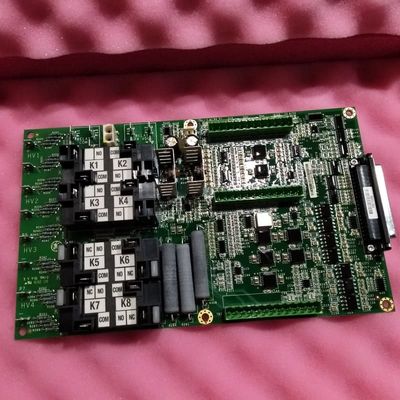

GE IS210AEAAH1BGB Conformal Coated PCB Mark VIe Turbine Control
| Place of Origin | USA |
|---|---|
| 브랜드 이름 | GE |
| 인증 | COO |
| Model Number | IS210AEAAH1BGB |
| Minimum Order Quantity | 1 |
| 가격 | $3500 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Name | GE IS210AEAAH1BGB Conformal Coated Printed Circuit Board | Product ID | IS210AEAAH1BGB |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Width | 100mm |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| 강조하다 | GE Mark VIe turbine control PCB,conformal coated turbine control board,GE IS210AEAAH1BGB PCB module |
||
제품 설명
GE IS210AEAAH1BGB Conformal Coated Printed Circuit Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS210AEAAH1BGB Conformal Coated Printed Circuit Board |
| Product ID | IS210AEAAH1BGB |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
Product Overview
The GE IS210AEAAH1BGB is a Conformal Coated Printed Circuit Board part of the Mark VIe Wind Turbine Series, serving as a modified "B"-revision variant of the original IS210AEAAH1 board.
Key Features
- Conformal Coating: A specialized chemical coating covers all components, providing enhanced protection, a defining trait distinguishing it from the original uncoated IS210AEAAH1.
- Part Number Breakdown: The "IS210" prefix denotes domestic manufacture with a special assembly version; "AEAA" is its functional acronym; "H1" designates Group 1 Mark VIe conformal-coated classification; "B" indicates a singular "B"-rated functional revision.

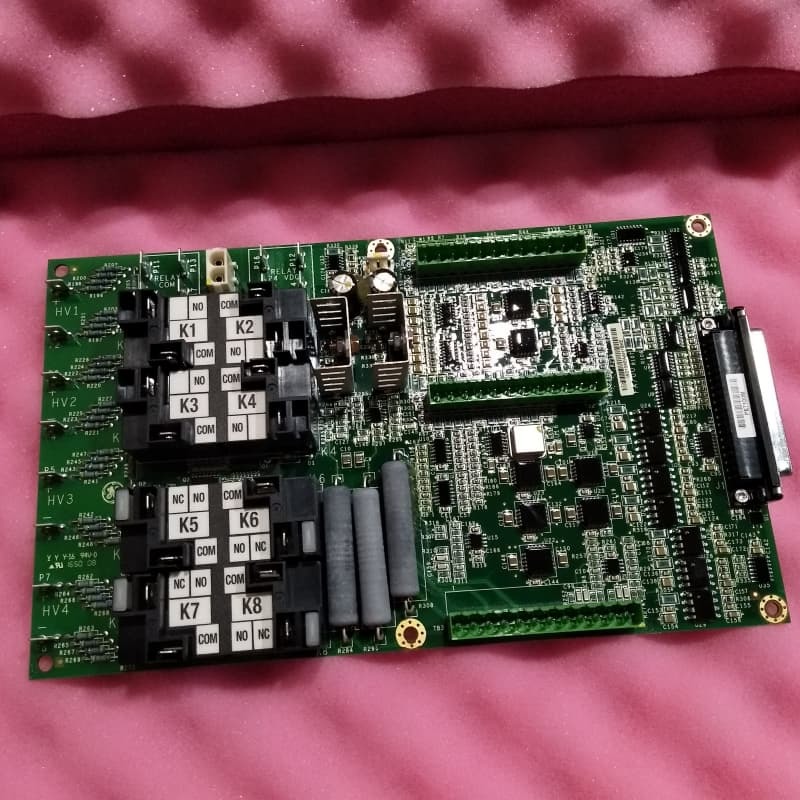

- Hardware Traits: Equipped with numerous integrated circuits and six insulated pre-drilled holes for installation. Lacks extreme daughterboards, featuring only two minor black plastic components on its base.
- Installation: Does not use GE's standard VME Rack Mounting Structure; instead utilizes the pre-drilled holes for mounting, differing from typical Mark VIe Series board installations.
- Modification: Revised from the original IS210AEAAH1, with adjusted performance specifications and dimensions due to the "B"-grade revision, despite appearing as a standard Mark VIe-style circuit board.
Product Images
