GE IS200VCMIH2B VME Bus Master Controller Board Mark VI

Place of Origin US
브랜드 이름 GE
Model Number IS200VCMIH2B
Minimum Order Quantity 1pc
가격 $7000
Packaging Details New and original factory, individual box packing
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999pcs

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
Name GE IS200VCMIH2B VME Bus Master Controller Board Product ID IS200VCMIH2B
Series Mark VI Function Bus Master Controller Board
Product Net Depth/Length 330mm Product Net Height 200mm
Product Net Width 100mm Product Net Weight 2kg
Warranty 1year
강조하다

GE VME bus master controller board

,

Mark VI turbine control board

,

GE IS200VCMIH2B controller board

메시지를 남겨주세요
제품 설명

GE IS200VCMIH2B VME Bus Master Controller Board


Product Details:

The GE IS200VCMIH2B is a VME bus master controller board in the Mark VI turbine control system, facilitating communication between I/O boards, control modules, and protection modules via the IONet. It supports both simplex and TMR configurations, with TMR models communicating across three I/O channels and other control modules.


Equipped with a Texas Instruments TMS320C32 32-bit DSP, it features dual-port memory, SRAM (64k×32), and flash memory (128k×8). Communication includes 10 Base2 Ethernet, VME bus transfers, an RS-232C serial port, and a parallel port. Mounted in slot one of the Central Control Module, it uses Software Implemented Fault Tolerance voting for input data, ensuring reliability in gas, steam, and wind turbine applications.


Features:

Dual Configuration Support: Operates in simplex or TMR systems, adapting to redundancy needs.


Robust Communication: Integrates Ethernet (IONet), VME bus, serial, and parallel ports for seamless data transfer between modules and I/O racks.


SIFT Voting: Enhances fault tolerance by voting on input data from IONet connections, ensuring accurate data transmission to controllers.


Powerful Processing: Uses a 32-bit DSP with dedicated memory for efficient signal processing and real-time control.


Comprehensive Diagnostics: Includes a watchdog timer (150 ms) for processor stall detection and redundancy-informed alarms.


Durable Hardware: Features a front faceplate with LEDs, connectors (IONet, serial), and components like FPGAs, transformers, and integrated circuits, designed for industrial resilience.


Mark VI Integration: Critical for Speedtronic systems, supporting expanded turbine applications beyond earlier Mark V capabilities.

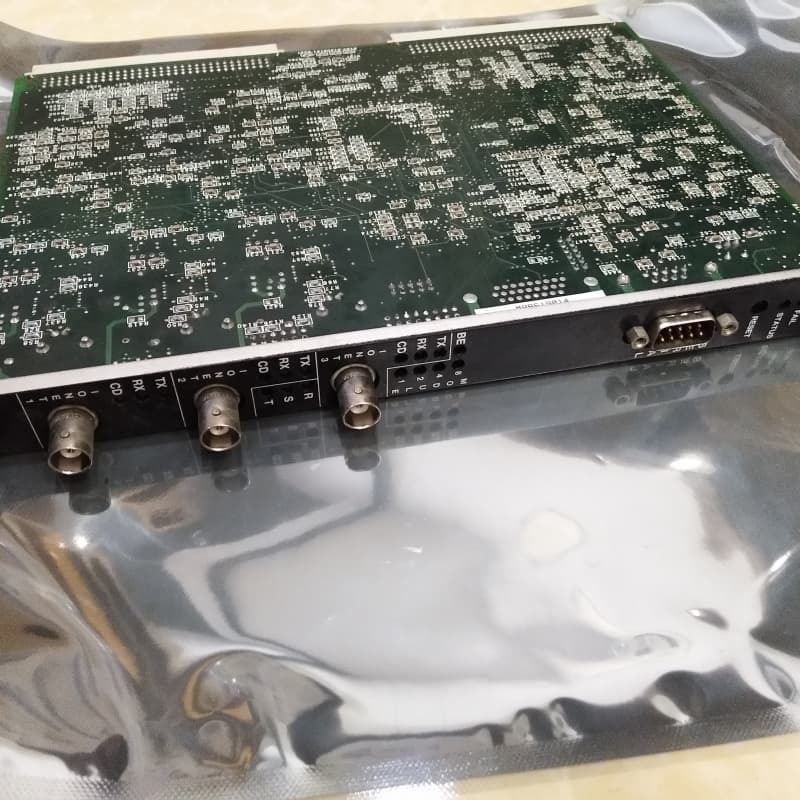

GE IS200VCMIH2B VME Bus Master Controller Board Mark VI 0

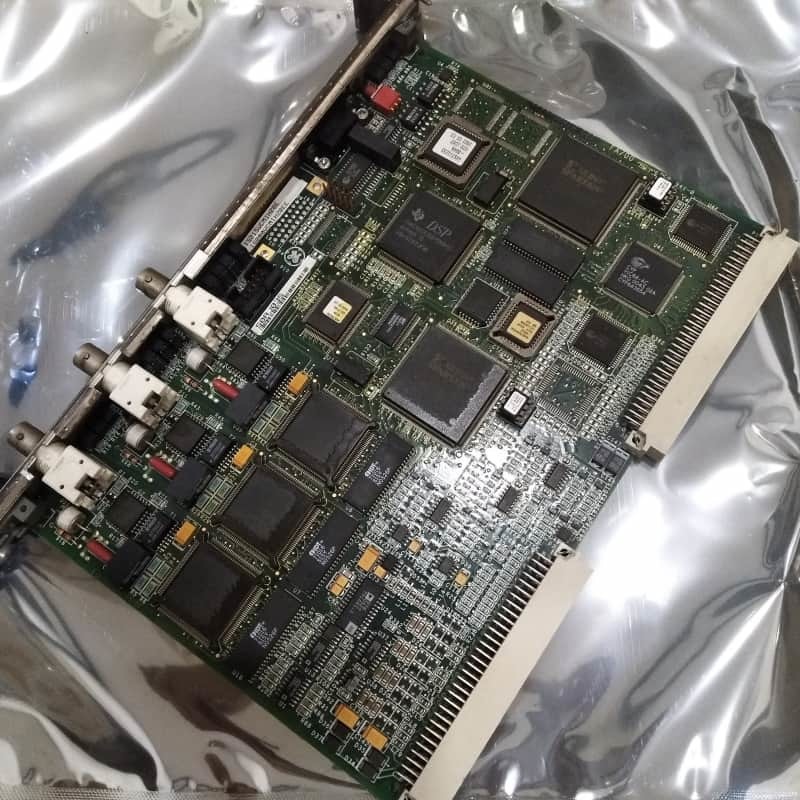

GE IS200VCMIH2B VME Bus Master Controller Board Mark VI 1
