GE IS200TDBTH6ABC Discrete I/O Terminal Board for Turbine Control
| Place of Origin | US |
|---|---|
| 브랜드 이름 | GE |
| 인증 | COO |
| Model Number | IS200TDBTH6ABC |
| Minimum Order Quantity | 1pc |
| 가격 | $7000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Name | GE IS200TDBTH6ABC Discrete Input/Output Terminal Board | Product ID | IS200TDBTH6ABC |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Input/Output Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| 강조하다 | GE turbine control terminal board,discrete I/O terminal board,IS200TDBTH6ABC terminal board |
||
제품 설명
GE IS200TDBTH6ABC Discrete Input/Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TDBTH6ABC Discrete Input/Output Terminal Board |
| Product ID | IS200TDBTH6ABC |
| Series | Turbine Specific Primary Trip Board |
| Function | Discrete Input/Output Terminal Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200TDBTH6ABC is a discrete input/output terminal board in GE's Mark VI Series, designed for distributed control systems. This industrial-grade component supports TMR (Triple Modular Redundancy) and offers flexible flat or DIN-rail mounting options.
Key Features
- 24 group-isolated contact inputs with 24, 48, or 125 V DC wetting voltage support
- Built-in noise suppression for surge and high-frequency interference resistance
- 12 form-C relay outputs with expandable functionality via option card
- Compatible with PDIO I/O packs for enhanced system integration
- D-type connectors for reliable connectivity
- Ethernet communication with controllers
- Supports three PDIO units in TMR configurations
- Simple installation via sheet metal carriers (DIN rail or cabinet-mounted)
- 48 terminal blocks (TB1 for relays, TB2 for inputs) using 18 AWG wires
- No hardware jumpers required (except for option card configuration)

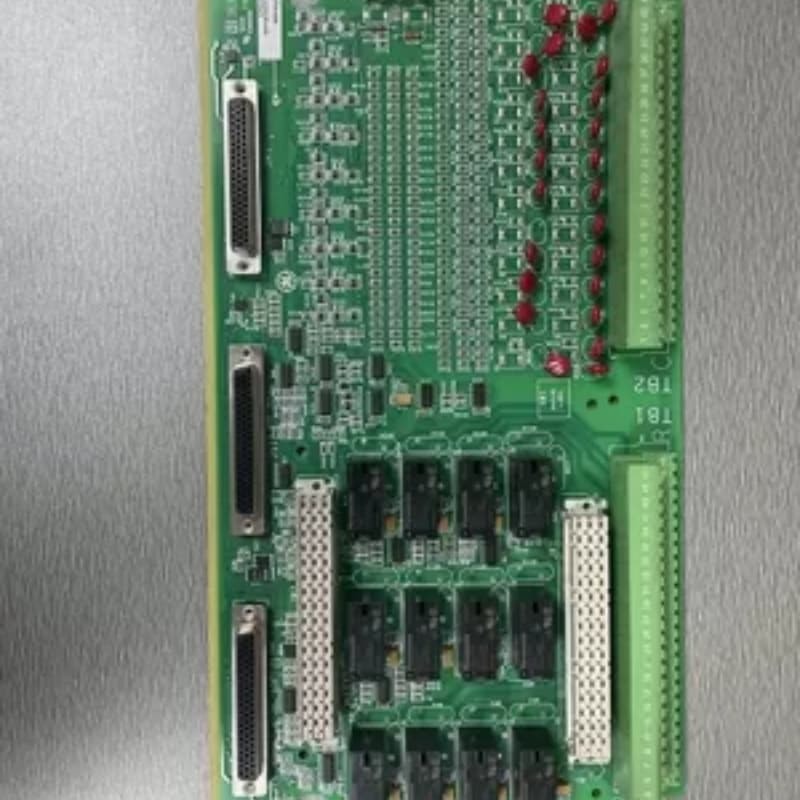

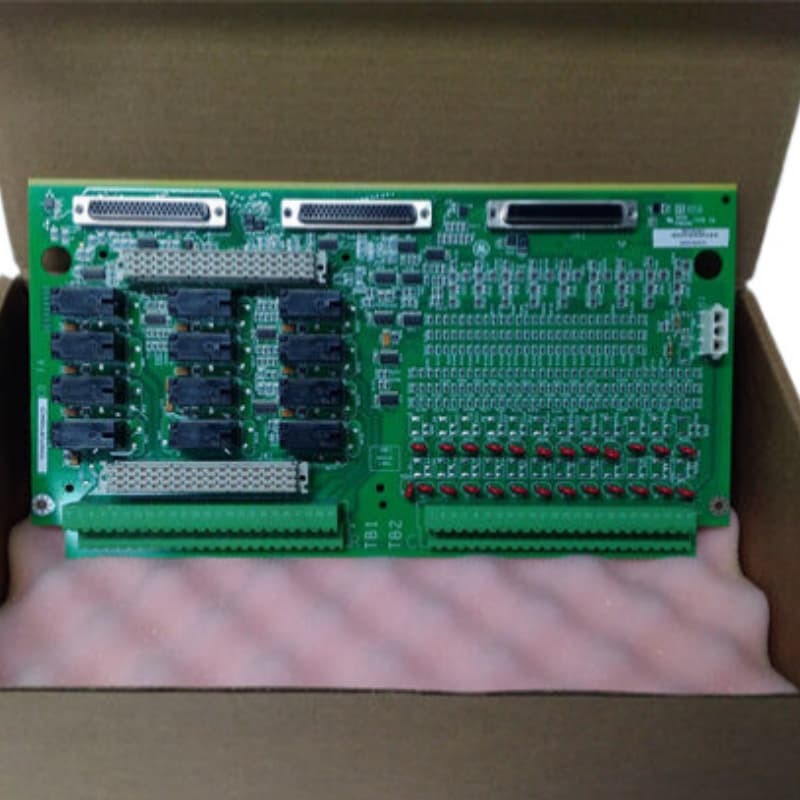

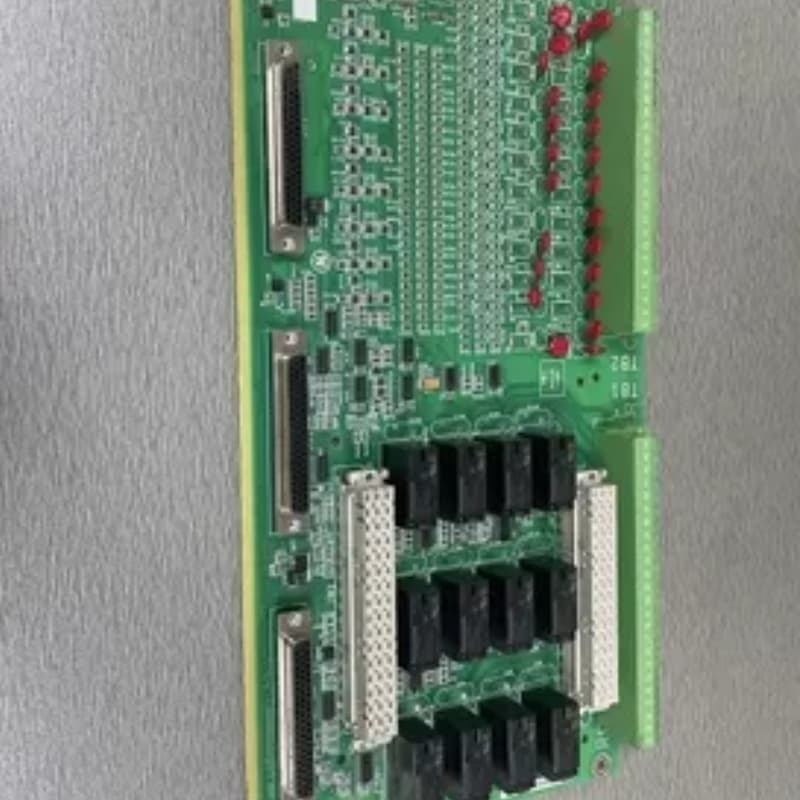

Product Images
Applications
Ideal for industrial environments requiring reliable discrete signal management, particularly in turbine control systems and other critical applications where robust signal processing is essential.
